Standard | ASTM, ASME and API |
Sizes | 1 / 8" NB - 24" NB |
Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
Type | Seamless / ERW / Welded / Fabricated / CDW |
Length | Single Random, Double Random & Required Length |
End | Plain End, Beveled End, Threaded |

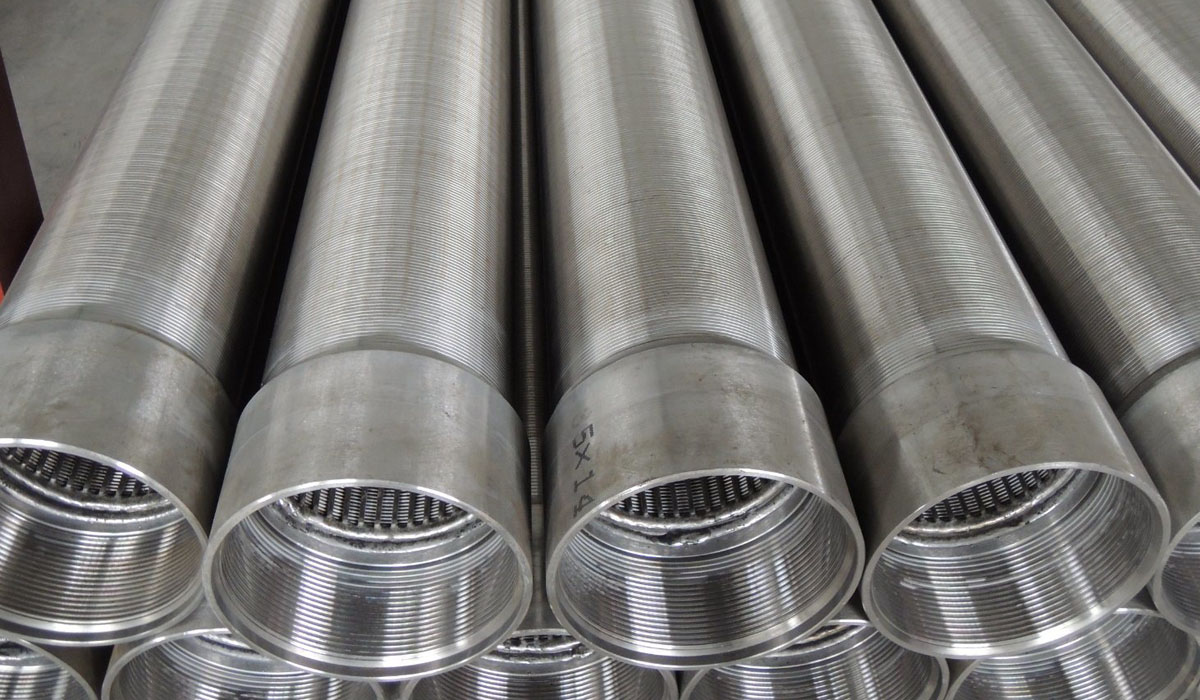

Product | Wire Wrap Screen Pipe, Slotted Liner, Perforated Pipe, Bridge Slotted Screen Pipe |
Application: | Municipal water source well, Domestic well, Agricultural water well, Groundwater, Industrial water well. |
Material: | 304, A53 seamless or erw |
Size | OD:114-219*5-22 |
Open area: | Up to 60% (high flow, low-pressure drop) |

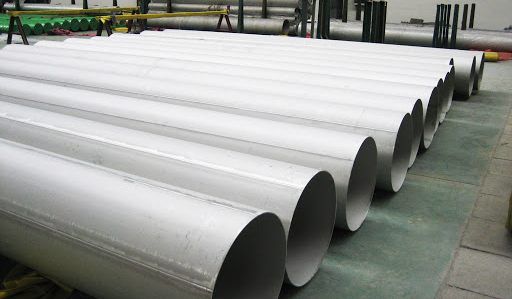

Product: | Stainless Steel Welded Pipe |
Size: | Outside Diameter: 1/4''-36'' |
Wall Thickness: SCH 5, SCH 10S, SCH 40S, SCH 80S | |
Pipe Standard: | ASTM A312/A1016/A269/A268/A789/A632/A250/A270/A358/A688/A814/A409 |
EN10216/EN10297/JIS G3448/G3459/G3463 | |
Grades: | 200 series:201,202.204Cu. |
300series:301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S,316,316L,321. | |
400 series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C. | |
Duplex and Others:2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc. | |
Application: | In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts |

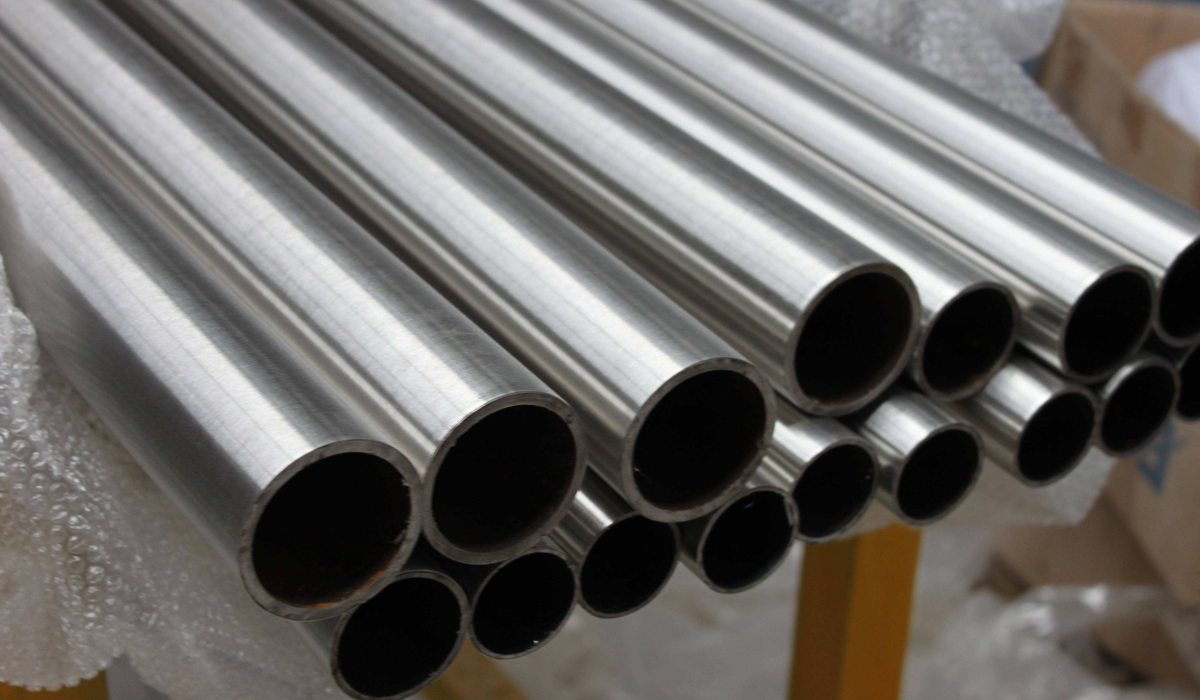

Product: | Stainless Steel Seamless Pipe, SS SMLS Pipe |
Size: | OD: 6mm to 710mm |
WT: 0.6mm - 48mm | |
LENGTH: 5.8/6/11.8/12m | |
Pipe Standard: | ASTM A312/A1016/A213/A269/A268/A789/A632/A249/A270/A376 |
JIS G3459/G3463 | |
EN10297 | |
Process: | Cold drawn, Cold rolled, Precision Rolled |
Finish: | Annealed & pickled, bright annealing, polished |
