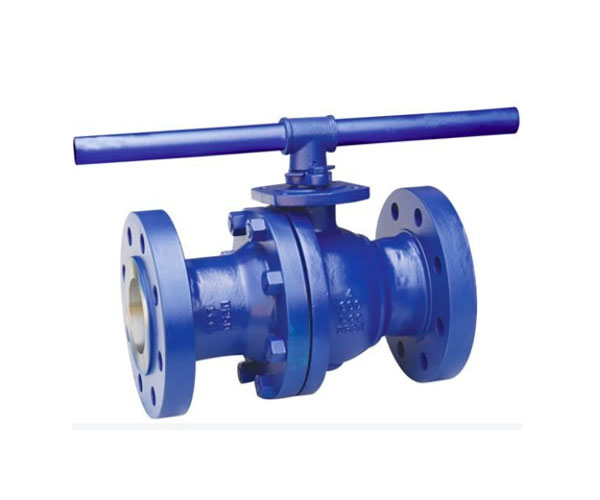

Ball Valve
Ball Valve
Ball Valve
Ball Valve

Ball Valve

ANSI Ball Valve

Class 150LB - 2500LB SIZE 1/2" - 48"

DIN Ball Valve

DN50 - DN600, PN16 - PN160

JIS Ball Valve

DN50 - DN600, 10K - 63K

BS Ball Valve

DN50 - DN350, PN16 - PN40

Materials

Stainless Steel, Cast Steel, Forged Steel

Types

Floating type, Trunnion type, Fully-Welded, Top-Entry, Three-Way Ball Valves, etc.

  • Description
  • Specification
  • Standard
  • Process
  • Packing

The ball valves are normally used as positive shut off valves. The positive shut off is attained because of the soft seats. Special design is also available with ball having shaped port for  regulation. Metal seated ball valves are also available for high temperature service.

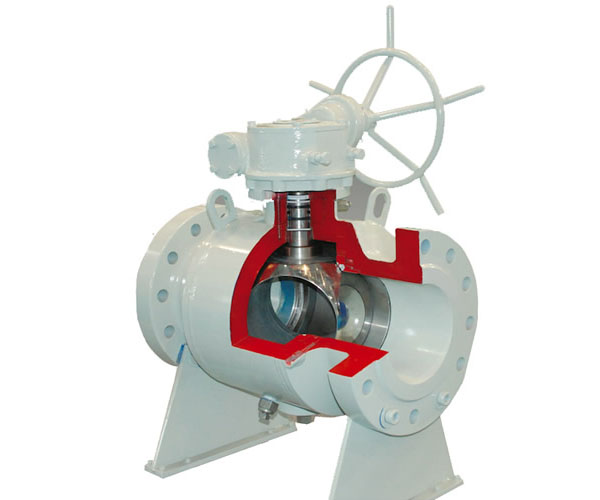

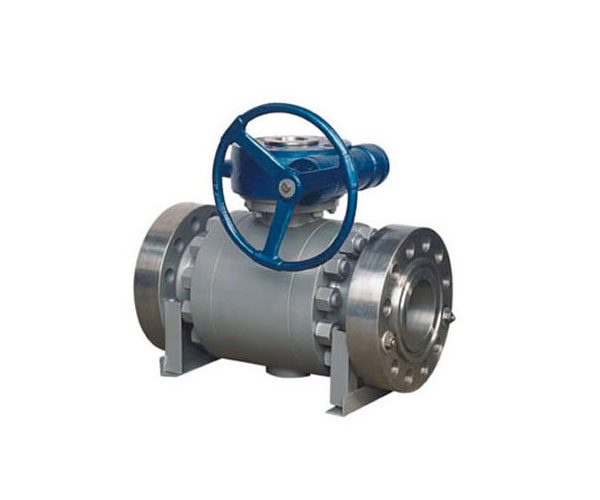

According to structural features, ball valve is classified into: floating ball valve, trunnion mounted ball valve, multi way ball valve.

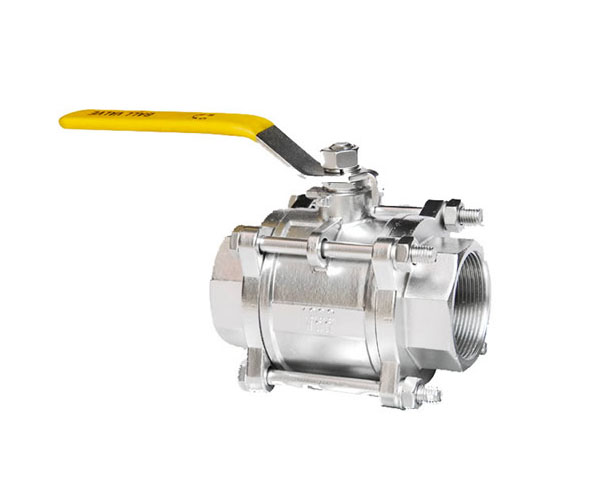

According connection, ball valve is classified into: flanged ball valve, fully welded ball valve and socket welded ball valve, ring type jointed (RTJ) ball valve.

According to materials used for body, ball valve is classified into casting ball valve, forged ball valve, stainless steel ball valve, etc.


Ball Valve Materials:

WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, A105, LF2, F11, F22, F5, F304, F316, F304L, F316L



Design & Manufacture Standards:

API 6D,API600, ASME B16.34, JISB2071, JISB2073, JISB2083, BS 1873, BS1414



Face to Face Standards:

ASME B16.10, DIN 3202, BS2080, API 6D, JISB2002



End Connection Standards:

ASME B16.11, ASME B1.20.1, ASME B16.5, DIN2543-2550, JISB2212 - JISB2214



Ball Valve Test Standards:

API 598, API 6D, JIS B2003, ISO 5208, BS 6755, DIN 3230, EN 12266
