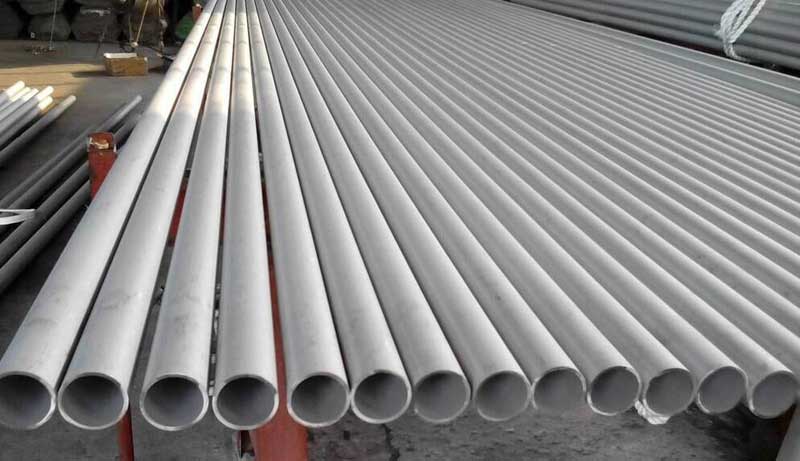

Nickel Alloy Pipe, Nickel Alloy Tube, Nickel Seamless Pipe and Tube |
|
Standard |
ASTM, ASME and API |
|
Sizes |
1 / 8" NB - 24" NB |
|
Thickness |
0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
|
Type |
Seamless / ERW / Welded / Fabricated / CDW |
|
Length |
Single Random, Double Random & Required Length |
|
End |
Plain End, Beveled End, Threaded |

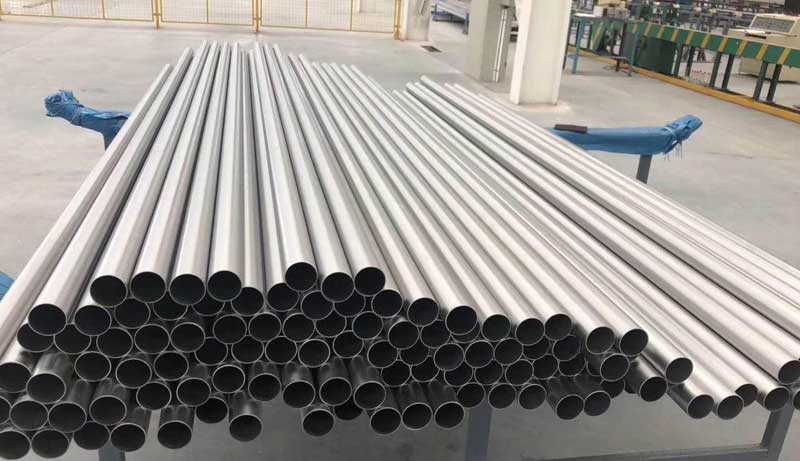

Nickel alloys are some of the most useful materials for manufacturing technically superior pipes and tubes for industrial applications. Their inherent properties make them viable for a wide range of uses. Nickel alloys are exceptionally corrosion resistant and can be used in high-temperature environments.
As nickel alloys are so ductile, they are very effectively machined to produce pipes and tubes, while retaining strength. This makes them good for use in heat exchangers in chemical processing, for example, which relies on tubing that can withstand both the hot and corrosive environment. Nickel-based tubes and pipes are also used in steam generators, aircraft systems, and in oil and gas extraction.
To meet the demand for these high-quality products, there are quite a few variants of nickel alloy pipes and tubes available on the market.
Common alloys for custom pipe & fittings include: Alloy 200, 201, 330, 400, 600, 601, 625, 718, 800, 800H, 800HP, 800HT, 825, 904L, AL6XN, Alloy 20, Alloy K500, C22, C276, Hastelloy X®, Inconel®, Monel®, Incoloy®.
Pure Nickel Seamless Pipes are supplied according to ANSI/ ASME B36.19.
WT = Nickel Pipe wall thickness
OD = Nickel Pipe outside diameter
|
Astm B725 Nickel Alloy Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
|
China GB |
Unified Digital Code |
ASTM |
UNS Code |
EN Code |
Company Commercial Grade |
|
Ni68Cu28Fe |
– |
400 |
N04400 |
2.4360 |
Monel 400 |
|
– |
– |
K500 |
N05500 |
2.4375 |
Monel K500 |
|
1Cr15Ni75Fe |
NS3102 |
600 |
N06600 |
2.4816 |
Inconel 600 |
|
1Cr23Ni60Fe13Al |
NS3103 |
601 |
N06601 |
2.4851 |
Inconel 601 |
|
20Cr25Ni60Fe10AlY |
– |
602 |
N06025 |
2.4633 |
Nicrofer 6025HT |
|
– |
– |
617 |
N06617 |
2.4663 |
Inconel 617 |
|
0Cr20Ni65Mo10Nb4 |
NS3306 |
625 |
N06625 |
2.4856 |
Inconel 625 |
|
0Cr30Ni60Fe10 |
NS3105 |
690 |
N06690 |
2.4642 |
Inconel 690 |
|
0Cr20Ni32AlTi |
NS1101 |
800 |
N08800 |
1.4876 |
Incoloy 800 |
|
1Cr20Ni32AlTi |
NS1102 |
800H |
N08810 |
1.4958 |
Incoloy 800H |
|
1Cr20Ni32AlTi |
NS1102 |
800HT |
N08811 |
1.4959 |
Incoloy 800HT |
|
0Cr21Ni42Mo3Cu2Ti |
NS1402 |
825 |
N08825 |
2.4858 |
Incoloy 825 |
|
00Cr15Ni60Mo16W5Fe5 |
NS3304 |
C276 |
N10276 |
2.4819 |
Hastelloy C276 |
|
00Cr17Ni57Mo13W3 |
NS3308 |
C22 |
N06022 |
2.4602 |
Hastelloy C22 |
|
– |
NS3405 |
C2000 |
N06200 |
2.4675 |
Hastelloy C2000 |
|
00Ni70Mo28 |
NS3202 |
B2 |
N10665 |
2.4617 |
Hastelloy B2 |
|
00Mo28Ni65Fe1.5Cr1.5 |
NS3203 |
B3 |
N10675 |
2.4600 |
Hastelloy B3 |
|
0Cr20Ni35Mo3Cu3Nb |
NS1403 |
Alloy 20 |
N08020 |
2.4660 |
Incoloy 020 |
|
00Cr27Ni31Mo3Cu |
– |
Alloy 28 |
N08028 |
1.4563 |
Sanicro 28 |
|
00Cr27Ni31Mo7CuN |
NS1404 |
Alloy 31 |
N08031 |
1.4562 |
Nicrofer 3127hMo |
|
00Cr22Ni48Mo7Cu2Nb |
NS3403 |
G3 |
N06985 |
2.4619 |
Hastelloy G3 |
|
00Cr30Ni43Mo5.5W2.5Cu2Nb |
NS3404 |
G30 |
N06030 |
2.4603 |
Hastelloy G30 |
|
0Cr33Ni55Mo8 |
– |
G35 |
N06035 |
2.4643 |
Hastelloy G35 |
|
0Cr15Ni70Ti3AlNb |
GH4145 |
X750 |
N07750 |
2.4669 |
Inconel X750 |
|
ominal Pipe Size |
Outside diameter |
Wall thickness |
|||||
|
SCH 5S |
SCH 10S |
SCH STD (40S) |
SCH XS |
SCH 160S |
SCH XXS |
||
|
1/8" |
10.29 |
- |
1.24 |
1.73 |
2.41 |
- |
- |
|
1/4" |
13.72 |
- |
1.65 |
2.24 |
3.02 |
- |
- |
|
3/8" |
17.15 |
- |
1.65 |
2.31 |
3.20 |
- |
- |
|
1/2" |
21.34 |
1.65 |
2.11 |
2.77 |
3.73 |
4.75 |
7.47 |
|
3/4" |
26.67 |
1.65 |
2.11 |
2.87 |
3.91 |
5.54 |
7.82 |
|
1" |
33.40 |
1.65 |
2.77 |
3.38 |
4.55 |
6.35 |
9.09 |
|
1 1/4" |
42.16 |
1.65 |
2.77 |
3.56 |
4.85 |
6.35 |
9.70 |
|
1 1/2" |
48.26 |
1.65 |
2.77 |
3.68 |
5.08 |
7.14 |
10.16 |
|
2" |
60.33 |
1.65 |
2.77 |
3.91 |
5.54 |
8.71 |
11.07 |
|
2 1/2" |
73.03 |
2.11 |
3.05 |
5.16 |
7.01 |
9.53 |
14.02 |
|
3" |
88.90 |
2.11 |
3.05 |
5.49 |
7.62 |
11.13 |
15.24 |
|
3 1/2" |
101.60 |
2.11 |
3.05 |
5.74 |
8.08 |
- |
16.15 |
|
4" |
114.30 |
2.11 |
3.05 |
6.02 |
8.56 |
13.49 |
17.12 |
|
5" |
141.30 |
2.77 |
3.40 |
6.55 |
9.53 |
15.88 |
19.05 |
|
6" |
168.28 |
2.77 |
3.40 |
7.11 |
10.97 |
18.24 |
21.95 |
|
8" |
219.08 |
2.77 |
3.76 |
8.18 |
12.70 |
23.01 |
22.23 |
|
10" |
273.05 |
3.40 |
4.19 |
9.27 |
12.70 |
28.58 |
25.40 |
|
12" |
323.85 |
3.96 |
4.57 |
9.53 |
12.70 |
33.32 |
25.40 |
|
14" |
355.6 |
3.96 |
4.78 |
9.53 |
12.70 |
35.71 |
- |
|
16" |
406.4 |
4.19 |
4.78 |
9.53 |
12.70 |
40.46 |
- |
|
18" |
457.2 |
4.19 |
4.78 |
9.53 |
12.70 |
45.24 |
- |
|
20" |
508.0 |
4.78 |
5.54 |
9.53 |
12.70 |
49.99 |
- |
|
22" |
558.8 |
4.78 |
5.54 |
9.53 |
12.70 |
53.97 |
- |
|
24" |
609.6 |
5.54 |
6.35 |
9.53 |
12.70 |
59.51 |
- |
The dimensions are in millimeters
|
ASTM B111 / ASME SB111 |
Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock |
|
ASTM B161 / ASME SB161 |
Standard Specification for Nickel Seamless Pipe and Tube |
|
ASTM B163 / ASME SB163 |
Standard Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes |
|
ASTM B165 / ASME SB165 |
Standard Specification for Nickel-Copper Alloy (UNS N04400)* Seamless Pipe and Tube |
|
ASTM B167 / ASME SB167 |
Standard Specification for Nickel-Chromium-Iron Alloys, Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617),and Nickel-Iron-Chromium-Tungsten Alloy (UNS N06674) Seamless Pipe and Tube |
|
ASTM B395 / ASME SB395 |
Standard Specification for U-Bend Seamless Copper and Copper Alloy Heat Exchanger and Condenser Tubes |
|
ASTM B407 |
Standard Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube |
|
ASTM B423 / ASME SB423 |
Standard Specification for Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06625 and UNS N06852) and Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219) Pipe and Tube |
|
ASTM B444 / ASME SB444 |
Standard Specification for Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06625 and UNS N06852) and Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219) Pipe and Tube |
|
ASTM B622 / ASME SB622 |
Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube |
|
ASTM B668 / ASME SB668 |
Standard Specification for UNS N08028 and N08029 Seamless Pipe and Tube |
|
ASTM B677 / ASME SB677 |
Standard Specification for UNS N08925, UNS N08354, and UNS N08926 Seamless Pipe and Tube |
|
ASME SB690 / ASME SB690 |
Standard Specification for Iron-Nickel-Chromium-Molybdenum Alloys (UNS N08366 and UNS N08367) Seamless Pipe and Tube |
|
ASTM B705 / ASME SB705 |
Standard Specification for Nickel-Alloy (UNS N06625, N06219 and N08825) Welded Pipe |
|
ASTM B729 / ASME SB729 |
Standard Specification for seamless UNS N08020, UNS N08026, and UNS N08024 nickel alloy pipe and Tube |
|
ASTM B829 / ASME SB829 |
Standard Specification for General Requirements for Nickel and Nickel Alloys Seamless Pipe and Tube |

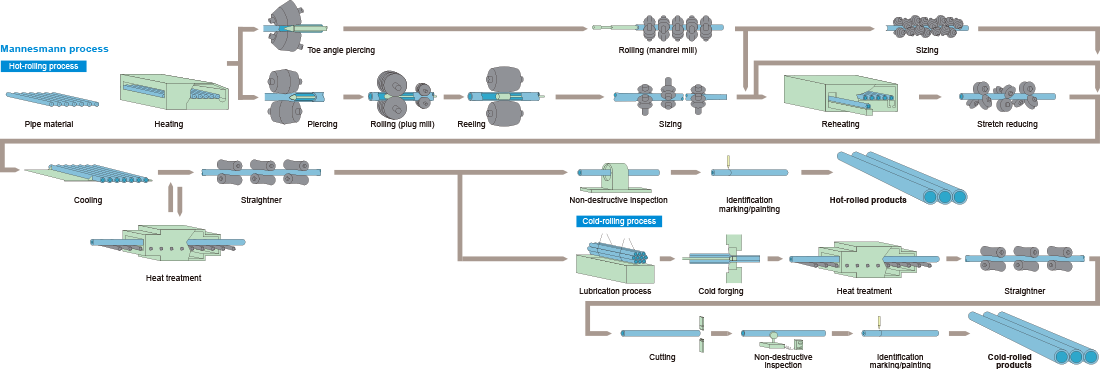

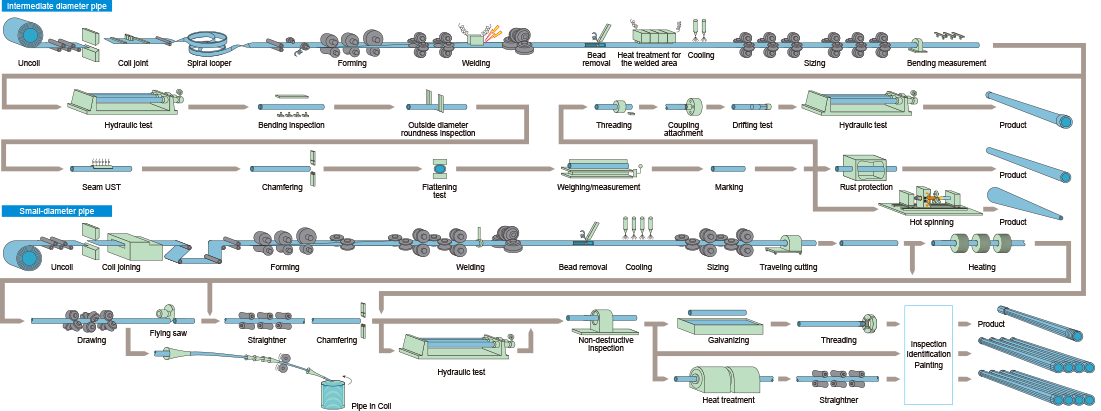

Seamless pipes & tubes (Mannesmann process)
