Types |
Swage nipple, threaded nipple, hex nipple |
|
Material |
Carbon steel, alloy steel, stainless steel |
|
Thread |
Female and Male NPT, BSPP, BSPT |
|
Dimensions |
1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' up to 6'' |
|
Wall Thickness |
Sch 10S, 20, STD, 40, XS, 80, 160, XXS |
|
Coatings |
Black Paint, Varnished, Galvanized |
Pipe nipples are a fitting with a male pipe thread on each end of the pipe. Which can be made with a large selection of materials such as brass, stainless steel, carbon, aluminum and many more. The pipe nipple is used to connect other pipes or hoses together. They can be used in plumbing and other industries.

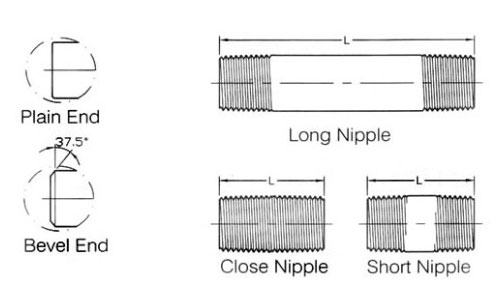

There are different end finishes to choose from for the nipples such as tapered pipe thread, straight pipe thread, roller cut, reamed and chamfered, square cut and grooved.
Material Grades of Steel Pipe Nipples
Stainless Steel: ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Alloy Steel: ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel: ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel: ASTM A105, A694 F52, F60, F65, F70, A350 LF2, LF3
