Product: |
Rectangular Steel Pipes, RHS, SHS |
|
Application: |
Widely used in furniture,interior decoration, structure |
|
Size: |
RHS OD: 20mm*10mm ~ 400mm*300mm SHS OD:10mm*10mm ~ 400mm*400mm |
|
Pipe Standard: |
ASTM A500/AS1163/BS1387/JIS G3466/EN10210/EN10219/ASTM A501 |
|
Furface: |
Black bared ,can be galvanized,oiled,painted,powdered. |
|
Packing: |
Waterproof plastic bag,bundle with strip |
Square Tube Standard
EN 10210:S235JRH,S355J2H,S355NH,S355J0H
EN 10219:S235JRH,S355J2H,S355NH,S355J0H
ASTM A500:Gr.A,Gr.B,Gr.C
Rectangular Tube Standard
EN 10210:S235JRH,S355J2H,S355NH
EN 10219:S235-S550
ASTM A500:Gr.b
ASTM A501:Gr.b

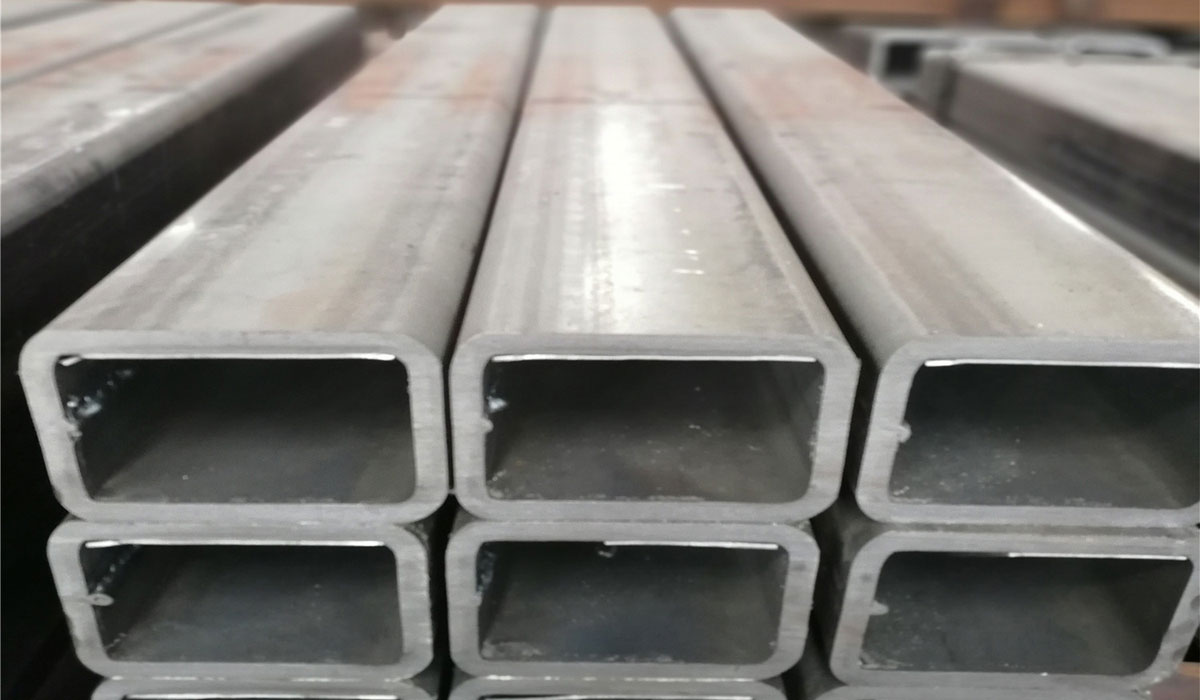

RHS – Rectangular Hollow Sections
RHS has inherently flat surfaces that make it more economical when it comes to joining and fabrication. Also, RHS is functional with clean lines and is used for construction and architectural applications.
RHS is manufactured in a wide range of dimensions and thicknesses, as well as combinations of both. Available thicknesses across the board are 1.6 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 5 mm, 6 mm, 8 mm, 9 mm, 10 mm, 12.5 mm, and 16 mm. Dimensions range from 50 mm x 20 mm to 400 mm to 300 mm.

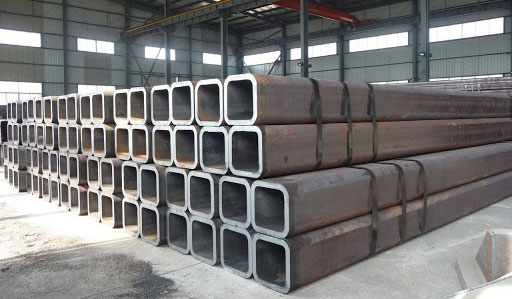

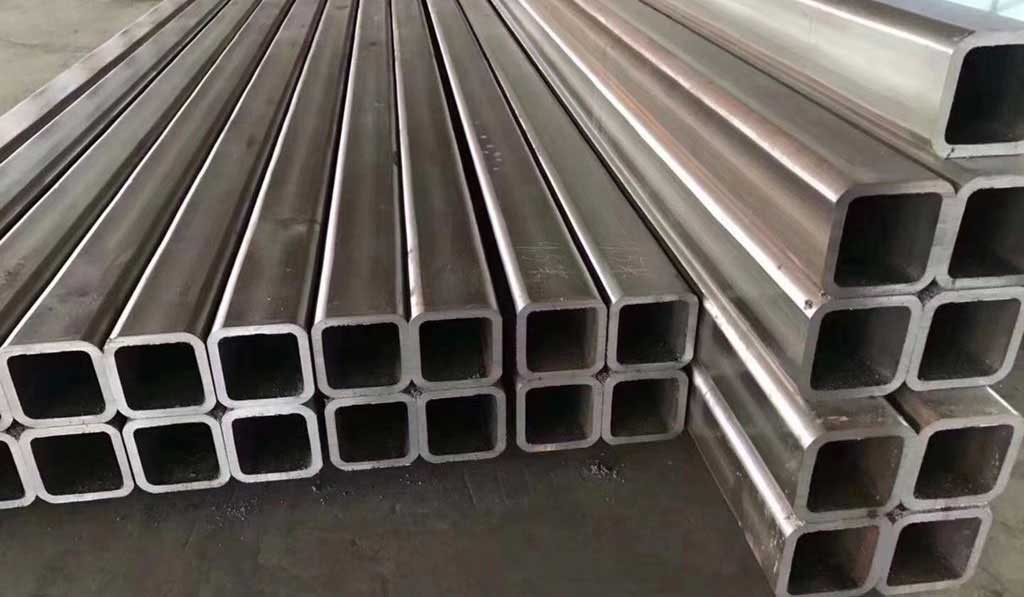

SHS – Square Hollow Sections
SHS steel tubing has similar uses to RHS and is used for both industrial and construction applications. Square section RHS is available in the same thicknesses as RHS and dimensions range from 20 mm x 20 mm to 400 mm x 400 mm.
|
Rectangular Hollow Section |
|
Square Hollow Section |
|||||
|
Size |
Thickness |
|
Size |
Thickness |
|
Size |
Thickness |
|
mm |
mm |
|
mm |
mm |
|
mm |
mm |
|
50 X 25 |
2.0 |
|
120 X 40 |
3.0 |
|
20 x 20 |
2.0 |
|
50 X 25 |
2.5 |
|
120 X 40 |
3.6 |
|
20 x 20 |
2.5 |
|
50 X 25 |
3.0 |
|
120 X 40 |
4.0 |
|
25 x 25 |
2.0 |
|
50 X 30 |
2.5 |
|
120 X 40 |
5.0 |
|
25 x 25 |
2.5 |
|
50 X 30 |
3.0 |
|
120 X 40 |
6.0 |
|
25 x 25 |
3.0 |
|
50 X 30 |
3.2 |
|
120 X 40 |
6.3 |
|
30 x 30 |
2.5 |
|
50 X 30 |
4.0 |
|
120 X 60 |
3.0 |
|
30 x 30 |
3.0 |
|
60 X 40 |
2.5 |
|
120 X 60 |
3.6 |
|
40 x 40 |
2.0 |
|
60 X 40 |
3.0 |
|
120 X 60 |
4.0 |
|
40 x 40 |
2.5 |
|
60 X 40 |
3.2 |
|
120 X 60 |
5.0 |
|
40 x 40 |
3.0 |
|
60 X 40 |
4.0 |
|
120 X 60 |
6.0 |
|
40 x 40 |
4.0 |
|
80 X 40 |
3.0 |
|
120 X 60 |
6.3 |
|
50 x 50 |
2.0 |
|
80 X 40 |
3.2 |
|
120 X 80 |
3.0 |
|
50 x 50 |
2.5 |
|
80 X 40 |
4.0 |
|
120 X 80 |
4.0 |
|
50 x 50 |
3.0 |
|
80 X 60 |
2.5 |
|
120 X 80 |
5.0 |
|
50 x 50 |
4.0 |
|
80 X 60 |
3.0 |
|
120 X 80 |
6.0 |
|
50 x 50 |
5.0 |
|
80 X 60 |
3.6 |
|
120 X 80 |
6.3 |
|
60 x 60 |
3.0 |
|
80 X 60 |
4.0 |
|
150 X100 |
3.0 |
|
60 x 60 |
4.0 |
|
80 X 60 |
5.0 |
|
150 X100 |
4.0 |
|
60 x 60 |
5.0 |
|
90 X 50 |
2.5 |
|
150 X100 |
5.0 |
|
70 x 70 |
3.0 |
|
90 X 50 |
3.0 |
|
150 X100 |
6.0 |
|
70 x 70 |
3.6 |
|
90 X 50 |
3.6 |
|
150 X100 |
6.3 |
|
70 x 70 |
5.0 |
|
90 X 50 |
4.0 |
|
160 X 80 |
3.0 |
|
80 x 80 |
3.0 |
|
90 X 50 |
5.0 |
|
160 X 80 |
4.0 |
|
80 x 80 |
3.6 |
|
100 X 40 |
3.0 |
|
160 X 80 |
5.0 |
|
80 x 80 |
5.0 |
|
100 X 40 |
3.6 |
|
160 X 80 |
6.0 |
|
80 x 80 |
6.0 |
|
100 X 40 |
4.0 |
|
160 X 80 |
6.3 |
|
90 x 90 |
3.0 |
|
100 X 40 |
5.0 |
|
200 X 100 |
4.0 |
|
90 x 90 |
3.6 |
|
100 X 50 |
3.0 |
|
200 X 100 |
5.0 |
|
90 x 90 |
5.0 |
|
100 X 50 |
3.6 |
|
200 X 100 |
6.0 |
|
90 x 90 |
6.0 |
|
100 X 50 |
4.0 |
|
200 X 100 |
6.3 |
|
100 x 100 |
4.0 |
|
100 X 50 |
5.0 |
|
200 X 100 |
8.0 |
|
100 x 100 |
5.0 |
|
100 X 50 |
6.0 |
|
200 X 100 |
10.0 |
|
100 x 100 |
6.0 |
|
100 X 50 |
6.3 |
|
200 X 100 |
12.5 |
|
100 x 100 |
8.0 |
|
100 X 60 |
3.0 |
|
200 X 100 |
16.0 |
|
100 x 100 |
10.0 |
|
100 X 60 |
3.6 |
|
250 X 150 |
6.3 |
|
120 x 120 |
5.0 |
|
100 X 60 |
4.0 |
|
250 X 150 |
8.0 |
|
120 x 120 |
6.0 |
|
100 X 60 |
5.0 |
|
250 X 150 |
10.0 |
|
120 x 120 |
8.0 |
|
100 X 60 |
6.0 |
|
250 X 150 |
12.5 |
|
120 x 120 |
10.0 |
|
100 X 60 |
6.3 |
|
250 X 150 |
16.0 |
|
150 x 150 |
5.0 |
|
100 X 80 |
3.0 |
|
300 X 200 |
6.3 |
|
150 x 150 |
6.0 |
|
100 X 80 |
3.6 |
|
300 X 200 |
8.0 |
|
150 x 150 |
8.0 |
|
100 X 80 |
4.0 |
|
300 X 200 |
10.0 |
|
150 x 150 |
10.0 |
|
100 X 80 |
5.0 |
|
300 X 200 |
12.5 |
|
180 x 180 |
6.0 |
|
100 X 80 |
6.0 |
|
300 X 200 |
16.0 |
|
180 x 180 |
8.0 |
|
100 X 80 |
6.3 |
|
400 X 200 |
10.0 |
|
180 x 180 |
10.0 |
|
|
|
|
400 X 200 |
12.5 |
|
180 x 180 |
12.5 |
|
|
|
|
400 X 200 |
16.0 |
|
200 x 200 |
6.0 |
|
|
|
|
450 X 250 |
10.0 |
|
200 x 200 |
8.0 |
|
|
|
|
450 X 250 |
12.5 |
|
200 x 200 |
10.0 |
|
|
|
|
450 X 250 |
16.0 |
|
200 x 200 |
12.5 |
|
|
|
|
|
|
|
250 x 250 |
8.0 |
|
|
|
|
|
|
|
250 x 250 |
10.0 |
|
|
|
|
|
|
|
250 x 250 |
12.5 |
|
|
|
|
|
|
|
300 x 300 |
8.0 |
|
|
|
|
|
|
|
300 x 300 |
10.0 |
|
|
|
|
|
|
|
300 x 300 |
12.5 |
Steel Grade: Q195, Q215, Q235, Q345, S235JR, S275JR, SS4007
|
Data |
Elements（%） |
||||
|
Materal Grade |
C |
Mn |
S |
P |
Si |
|
Q195 |
0.06-0.12 |
0.25-0.50 |
<0.05 |
<0.045 |
<0.30 |
|
Q215 |
0.09-0.15 |
0.25-0.55 |
<0.05 |
<0.045 |
<0.30 |
|
Q235 |
0.12-0.20 |
0.30-0.70 |
<0.045 |
<0.045 |
<0.30 |
|
Q345 |
<0.20 |
1.0-1.6 |
<0.04 |
<0.04 |
<0.55 |
Mechanical property
|
Materal Grade |
Yield point (Mpa) |
Tensile Strength (Mpa) |
Elongation(%) |
|
Q195 |
>195 |
315-430 |
32-33 |
|
Q215 |
>215 |
335-450 |
26-31 |
|
Q235 |
>235 |
375-500 |
24-26 |
|
Q345 |
>345 |
470-630 |
21-22 |
|
Length |
+/- 50 MM |
|
Wall Thickness |
+/- 12.5% |
|
Weight |
+/- 8% |
Note:
A: with, T: wall thickness,
SHS:Square Hollow Section
RHS: Rectangular Hollow Section
Surface Finish: hot dipped galvanized, electro galvanized, black
Mill Test Certificate: EN 10204/3.1B
Third party inspection: SGS, BV, Lloyds etc.
Note: Pre-galvanized square / rectangular hollow section with OD 19mm-70mm and thickness 1mm-2.3mm are also available.
|
A500 |
Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes |
