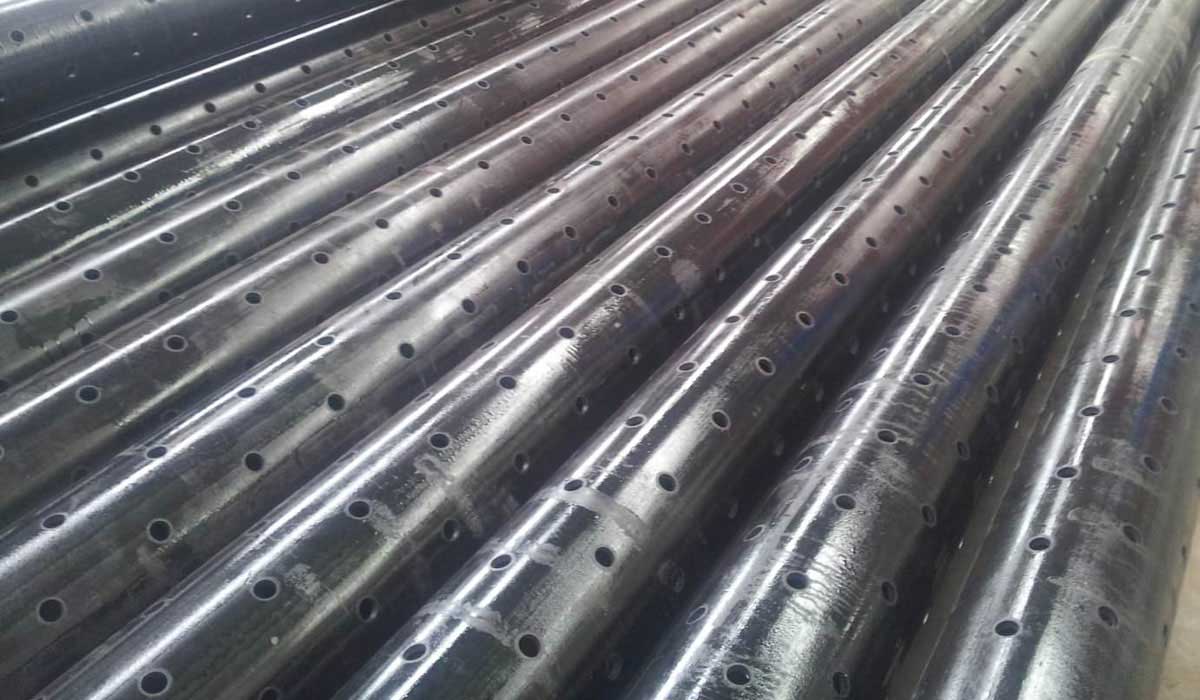

Slotted pipe are used for oil and gas wells. Steel casing pipes and tubing are applied to furnishing and installing cased tunnels, where they indicate to pass other utilities or obstructions without open excavation. Steel casing pipes and tube have smooth wall and a minimum yield strength of 35,000 psi. Corrosion-proofing water-based paint is applied on the outside pipe surface to protect against atmospheric corrosion during transportation and storage.


Features of slotted pipe

1.Varied slot sizes and patterns and shapes;

2.Lower cost than wire wrapped screens, in some situations slotted liner now used for the same functionality as sand control screens;

3.Simple installation due to no outer screen added;

4.Low risk of collapse and deformity;

5.The slotted pipes control sand better, which are suitable for the well with sand diameter more than 0.3mm.

6.The slot can be longitudinal and vertical and the section of the slot can be parallel and trapezoid types, which creates wide open area.

7.Easy to operate and to be connected with larger inner diameter.


Applications

1.Where well productivity is small and economics cannot support the use of screens;

2.Ideal for sand control for low fines and clay reservoirs;

3.Excellent sand control choice for thermal heavy oil &bitumen reservoirs;

4.Suitable for high CO2/H2S, SAGD, CSS, and CBM.


Slot Types

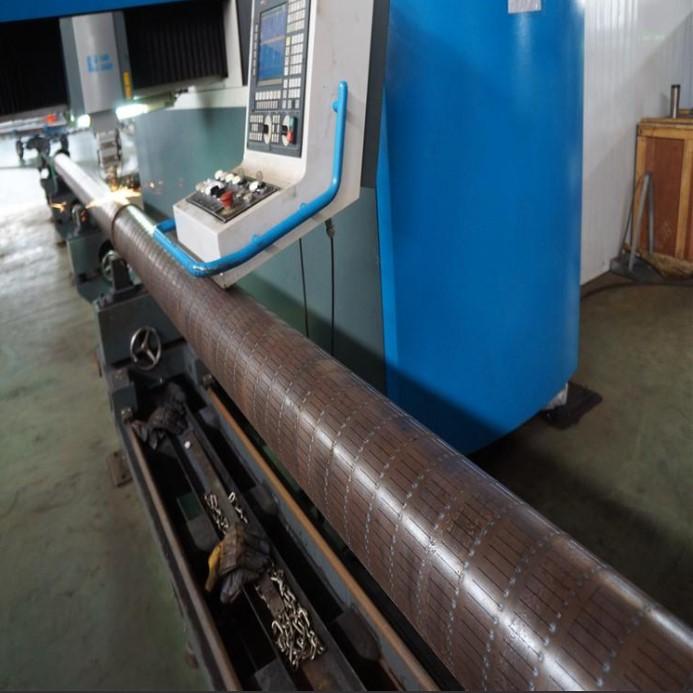

We are able to laser-cut slots as per customer specification, either as straight slots or keystone slots.

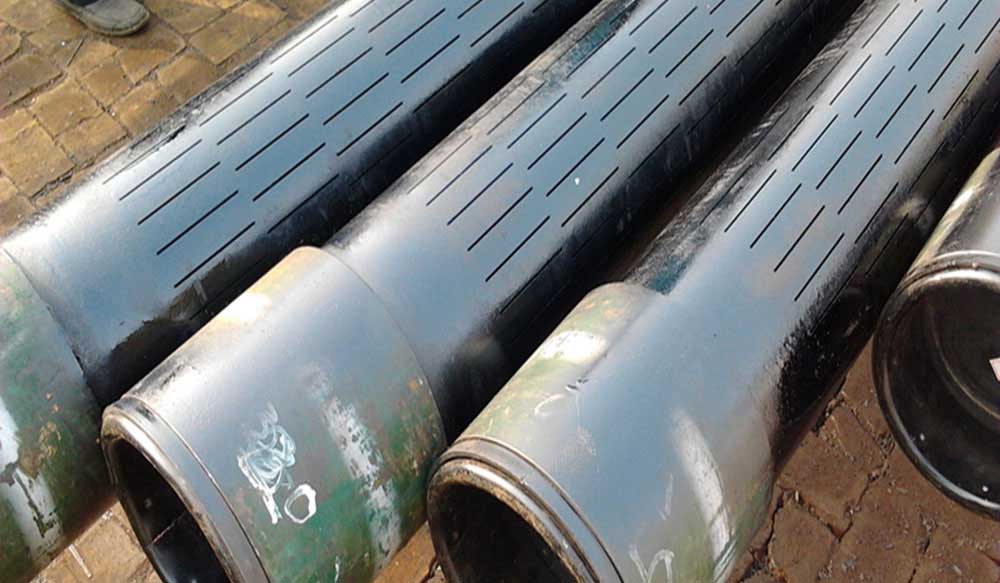

Straight Slots

Cut at a right angle to the liner, this slot type shows the same diameter from the inside to the outside of the wall. Although straight slots are cheaper to produce, they are less effective in sand control compared to keystone slots.


Keystone Slots

Cut at a slight angle, keystone slots, or tapered slots, are larger on the inside than on the outside, making sure that any particle entering the slot can pass through freely without clogging the slot.

Keystone slots are more expensive to than straight slots, but lower the risk of production losses due to plugged liner slots.


Slot Patterns

Whether you want your slotted pipe with a line, staggered, gang, overlapping, horizontal, or any other pattern, we can cut them all.

Among all slot patterns, the following three are the most common.


Line (Straight) Pattern

In the line pattern, slots are placed evenly in identical bands around the pipe, forming straight lines of slots across the length of the slotted liner.


Single-Slot Staggered Pattern

In the single-slot staggered pattern, bands of evenly spaced slots are placed around the pipe. Slots in different bands are offset (staggered) to each other.

The single-slot staggered pattern preserves the strength of the pipe and provides an even distribution of the slots over the area of the pipe.


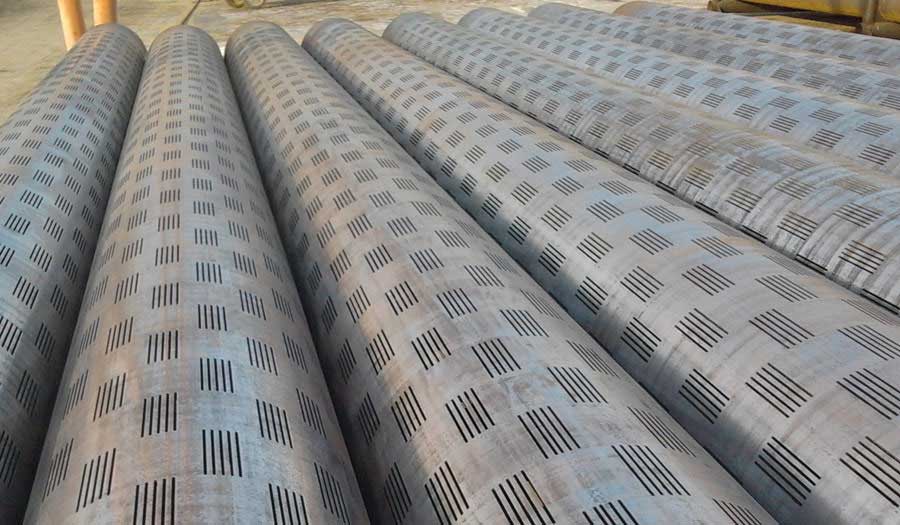

Gang Pattern (Multiple Staggered Pattern)

While having the same overall layout as the single-slot staggered pattern, the gang pattern places two slots, cut at close proximity, instead of just one slot at each position.

Slotted pipe with a multiple staggered pattern has been shown to withstand higher torque during installation and provide better resistance to deformation under thermal load compared to the single-slot staggered pattern, making it well suited for application in steam assisted gravity drainage (SAGD) applications.

API Std.Casing

ID

mm



Length

m



Slot

Length

mm



Slot

No./m



Slot

Width



Slot

Tolerance



Valid Filter

Area

cm2/m



Max.

Strength

KN



Spec.

mm

Thickness

mm

Per

Weight

Kg/m

60.32

5

6.84

50.3

3

80

200

0.3

±50

48

512.54

73.02

5.5

9.15

62

3

80

240

0.3

±50

57.6

688.55

88.9

6.5

13.22

75.9

3

80

280

0.3

±50

67.2

995.1

101.6

6.5

15.22

88.6

3

80

300

0.3

±50

72

1151.2

114.3

7

18.47

100.3

10

80

320

0.3

±50

76.8

1400.4

127

7.52

22.13

112

10

80

340

0.3

±50

81.6

1673.8

139.7

7.72

25.11

124.3

10

80

360

0.3

±50

86.4

1900.2

139.7

9.17

29.48

121.4

10

80

0.3

0.3

±50

86.4

2232.4

168.3

8.94

35.09

150.4

10

80

400

0.3

±50

96

2672.95

177.8

8.05

33.68

161.7

10

80

440

0.3

±50

105.6

2559.2

177.8

9.19

38.19

159.4

10

80

440

0.3

±50

105.6

2940.7

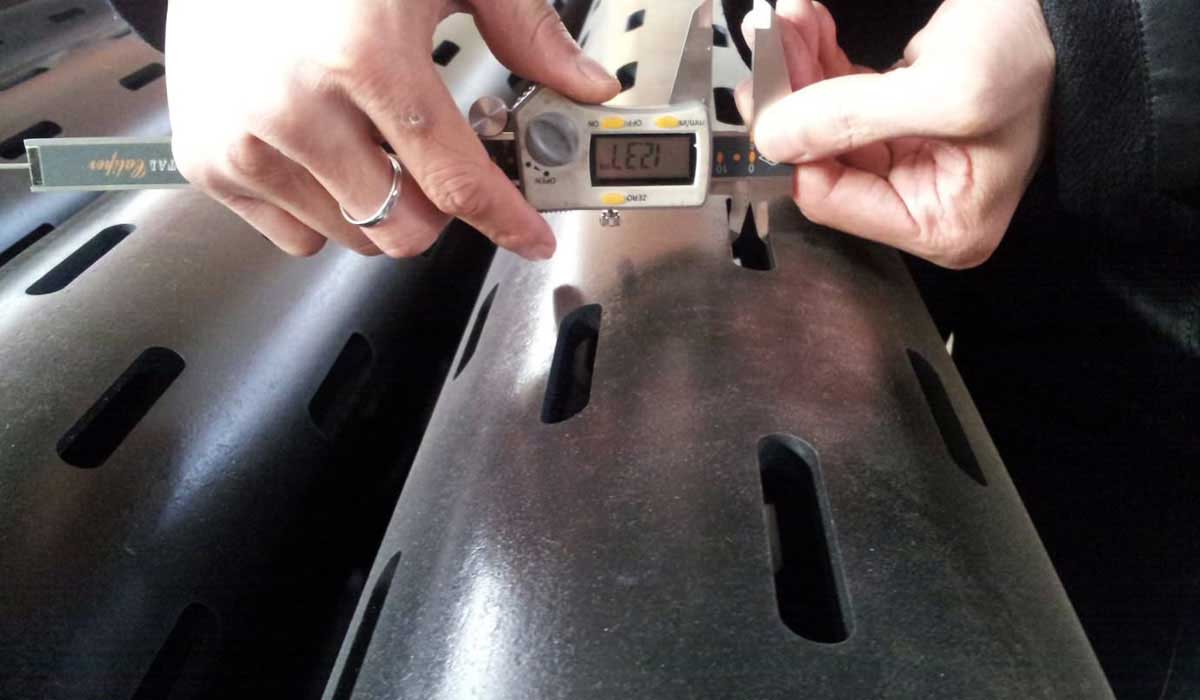

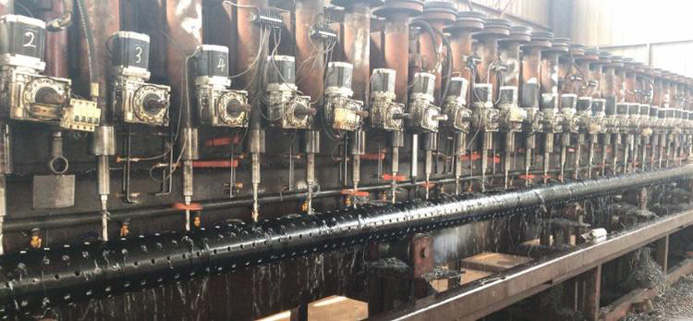

The narrowest of the slot can be up to 0.10mm
The carbon steel thickness of the cutting can be 20mm
The stainless steel thickness of the cutting can be 10mm

API Spec 5CT – Specification 5CT/ISO 11960, Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells
